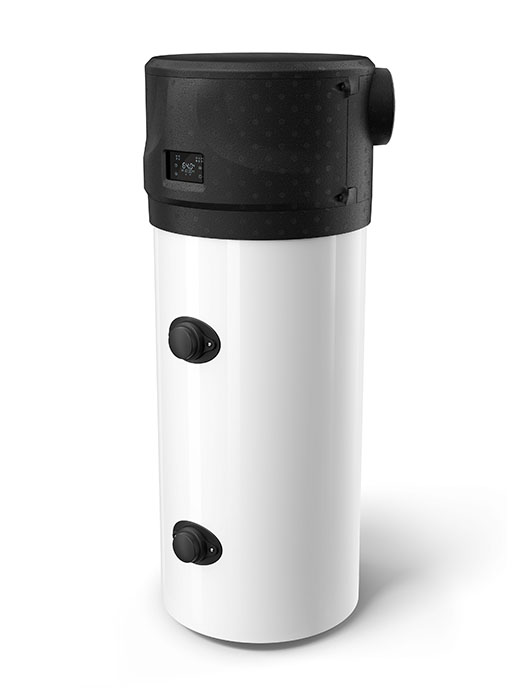

TESY AquaThermica Pro is a floor standing air-to-water heat pump for domestic hot water engineered for high energy efficiency, smart performance, and eco-conscious operation. Designed for domestic hot water production, it is available in 200L and 260L capacities
Using the natural R290 (propane) refrigerant, AquaThermica Pro achieves ultra-low Global Warming Potential (GWP) and zero Ozone Depletion Potential (ODP). It can heat water up to 65°C using only the heat pump, offering energy savings versus conventional electric water heaters. Its high Coefficient of Performance (COP)—up to 3.8—makes it one of the most efficient systems in its class.
Floor-standing "air-water" heat pump for domestic hot water production.
The AquaThermica Pro range includes models with a volume of 200 and 260 liters without a heat exchanger
Greater energy efficiency and performance = > ecofriendly refrigerant R290 /propane/
Electric heater for faster heating and reaching a high temperature of 75°C
Automatic "Antilegionella" function and self-diagnosis system
Energy class A+
Reduced CO2 emissions
Temperature range of the incoming air from -7°С to +43°С
reduced electricity consumption
Lateral 45° air ducts for installation in rooms as low as 2 meters
Quiet operation: just 34 dB(A) at 1 meter
DRY CHECK Check the magnesuim anode without draining the water.
Electronic Expansion Valve (EEV) for precision refrigerant control
Microchannel condenser and dual temperature sensors for performance and efficiency
Connection to solar and photovoltaic panels
Easy-to-use electronic panel
| TIN | 306179 |
| Kapacita | 260 L |
| Rozsah | 260 |
| Výška | 1911 m |
| Energetická třída | A+ |
| Maximální provozní teplota | 75 °C |
| Maximum working pressure | 8 bar |
| Průměr | 630 mm |
| Declared load profile | XL |
| Electric heating element power | 1.5 kW |
| Min. ÷ max temperature heat pump air intake (90% R.H.) | -7 ÷ 43 °C |
| Frequency | 50 Hz |
| Annual electricity consumption in kWh under average climate conditions | 1152 kWh |
| Power supply | 1/N/220-240 V |
| Compressor | Rotary |
| Min. ÷ max. teplota miesto inštalácie | -4 ÷ 40 °C |
| Ochrana kompresoru | Thermal circuit breaker with automatic reset |
| Maximální proud v HP | 2.5 + 6.5 (e-heater) = 9 A |
| Požadované ochrany proti přetížení | 16A T fuse/ 16 A automatic switch characteristic C (to be expected during installation on power supply systems) |
| Ventilátor | Centrifugal |
| HP Maximální nastavitelná teplota | 65 °C |
| Vnitřní ochrana | Single safety thermostat with manual reset on a resistive element |
| Jmenovitý objem vzduchu | 360 m³/h |
| Ochrana motoru | Internal thermal circuit breaker with automatic reset |
| Kondenzátor | Wrapped externally not in contact with water |
| Přepravní hmotnost | 112,8 kg |
| Automatický dezinfekční cyklus proti Legionnelle | YES |
| Minimální výška objektu | 2000 mm |
| Rozmrazování | Active 4-way valve |
| CoP (DHW) | 3.8 |
| Stupeň ochrany | IPX4 |
| Chladivo | R290 |
| Náplň chladiva | 150 |
| Average heat pump consumption [Condition EN16147:2017 A7/W55] | 0.400 kW |
